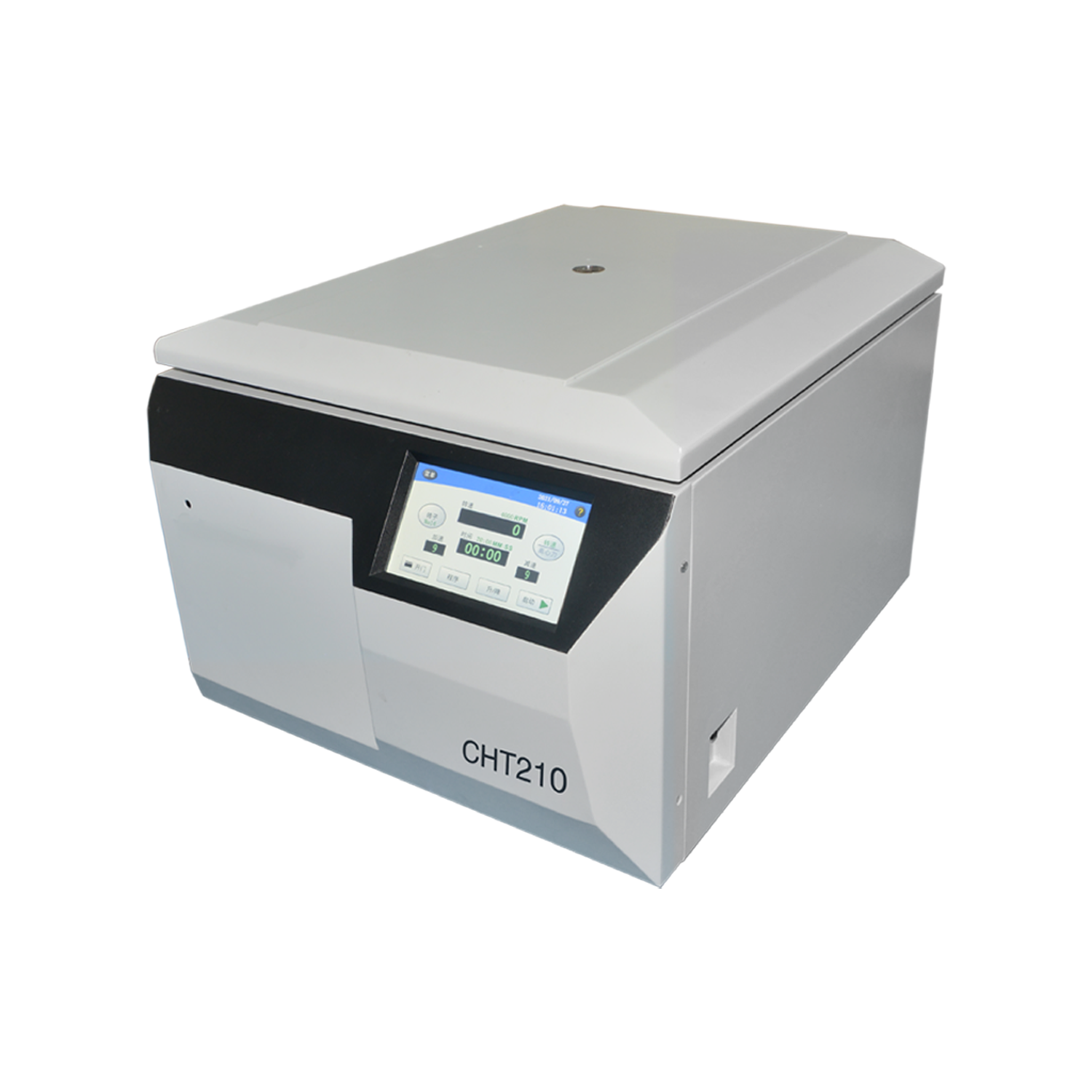

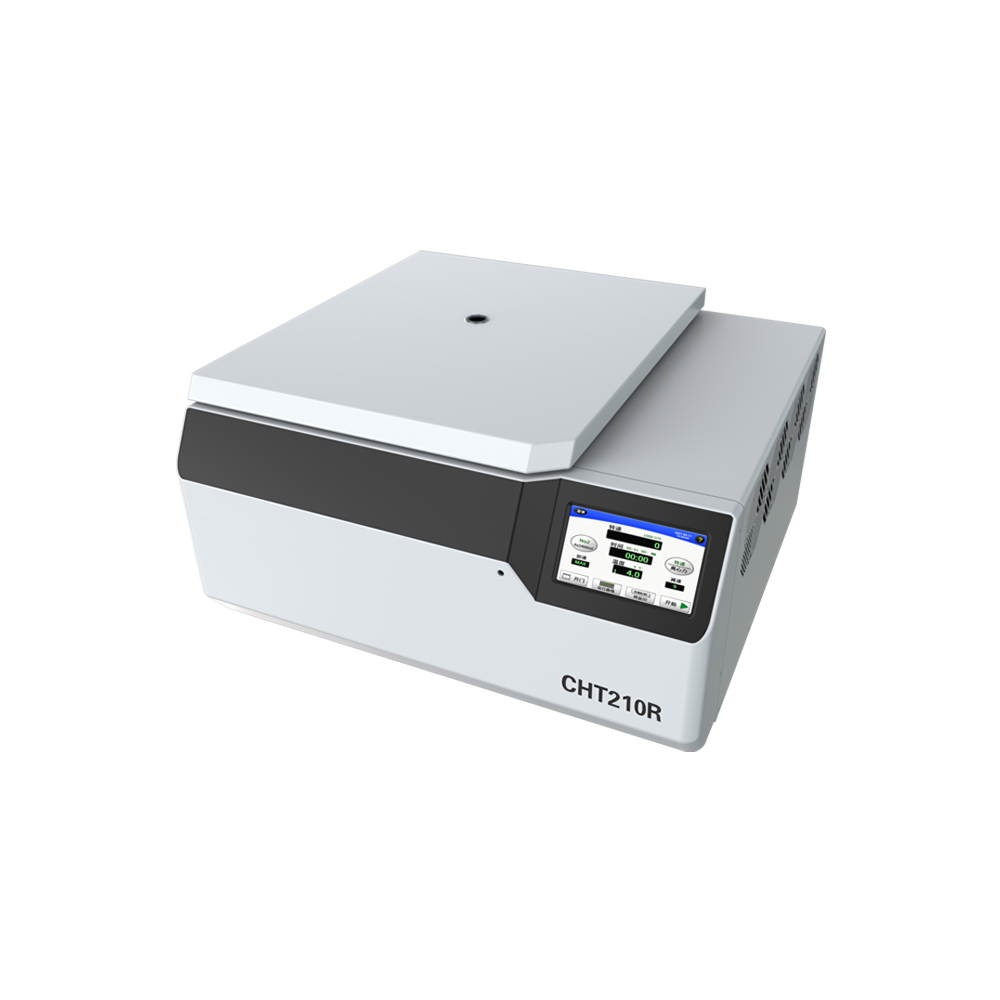

CHT210 /CHT210R(Large Capacity)

  • CH210R adopts the latest VF compressor with PID dynamic intelligent temperature control technology(Patent NO: zl201922274761.7)and dual channel frequency conversion refrigeration system(Patent NO:zl201922269242.1). It's the top level in the world, meets customers' high-precision temperature control experiments, and protects temperature-sensitive samples. Equipped with a variety of aerosol-tight buckets, to ensure safety when separating dangerous samples. It is the first choice for molecular biology, protein, DNA, RNA, cell separation, and clinical medicine.

Product advantages

  • 7-inch  HD  touch screen, Setting parameters and running parameters at a glance.

  • Input the value directly by touch screen for parameter setting, which is fast and convenient.

  • The document's sleep can be set(user-defined) according to the period's time interval. Who can use the refrigeration effect, save energy, and increase the amount of Instrument's service life?

  • The pre-cooling function is available. Pre-cooling parameters can be customized according to different motors. It can also be scheduled so the experiment can be carried out once it enters the laboratory to save time.

  • 100 user-defined program groups can be set and named easily. which makes it more convenient to distinguish different experiments in use to realize the repeatability of the experiment

  • 11  Acceleration and  12  Deceleration rates to achieve the best centrifugal effect.

  • The running and diagnostic records are saved automatically so the user can effectively check the instrument's operation and the separation of each batch of samples.

  • AC  variable frequency motor, no carbon pollution, a maintenance-free, long service life, and curate pee control accuracy of less than 10r/min.



Technical parameter

Product ModelCHT210RCHT210

RefrigeratedNon-refrigerated
Max Speed21000r/min21000r/min
Max RCF32752xg30642xg
Max Capacity4x750ml4x750ml
Speed Accuracy±10r/min±10r/min
Timing modeStart  timing, Speed timing, Continuous timingstarting, speed timing, and continuous timing.
Temperature Setting Range-20~40/
Temperature AccuracyTemperature controlled to  4±0.5at  ma peed. /
Pre-cooling functionYes/
Compressor UnitVF  compressor  unit(R134a)/
Noise≤65dB(A)≤65dB(A)
Short SpinningYesYes
Rotor IdentificationYesYes
Power SupplyAC220±22V      50/60HzAC220±22V  50/60Hz
Power Consumption1.6kW900W
Dimension(W×DxH)713×681×398(mm)510×635×398(mm)
PackingDimension(W×DxH)860×810×620(mm)660×770×450(mm)
NetWeight95kg76kg

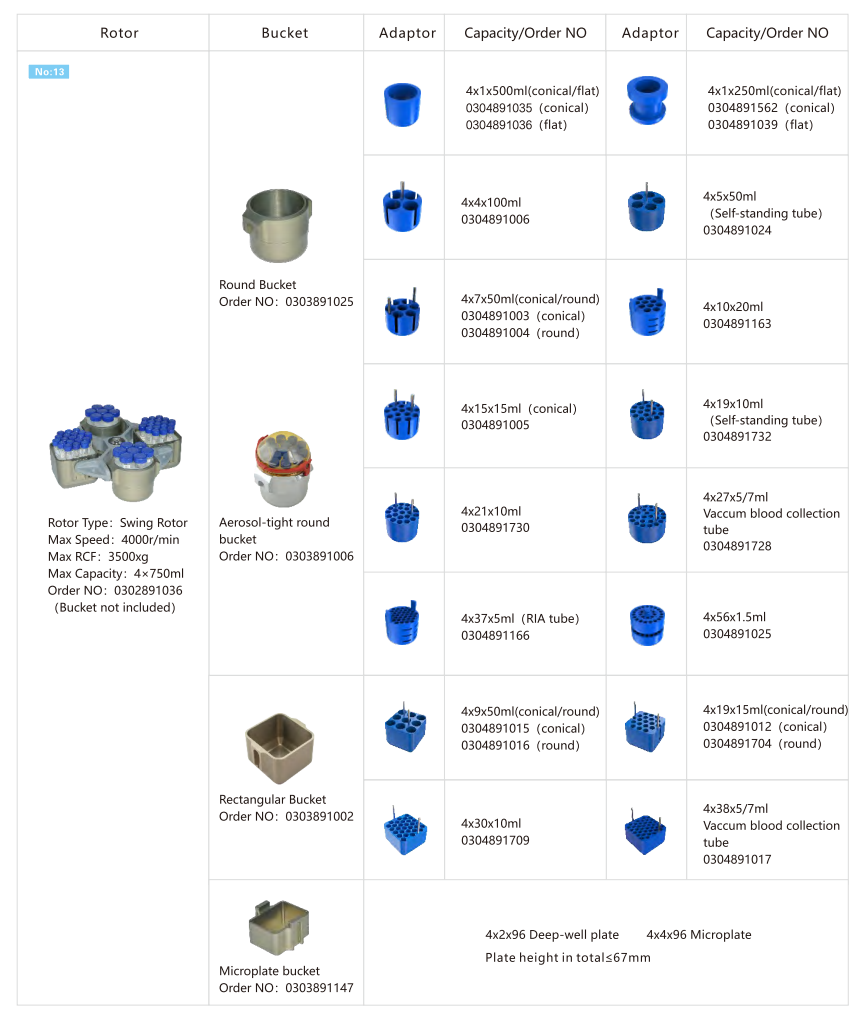

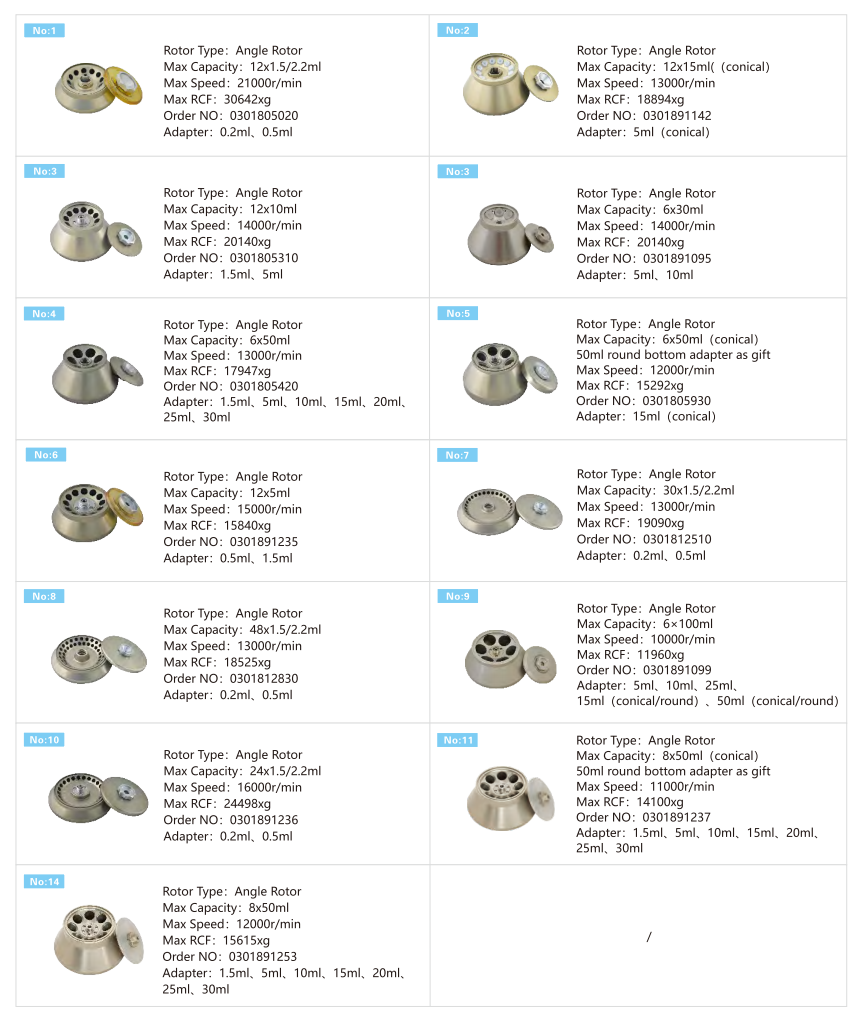

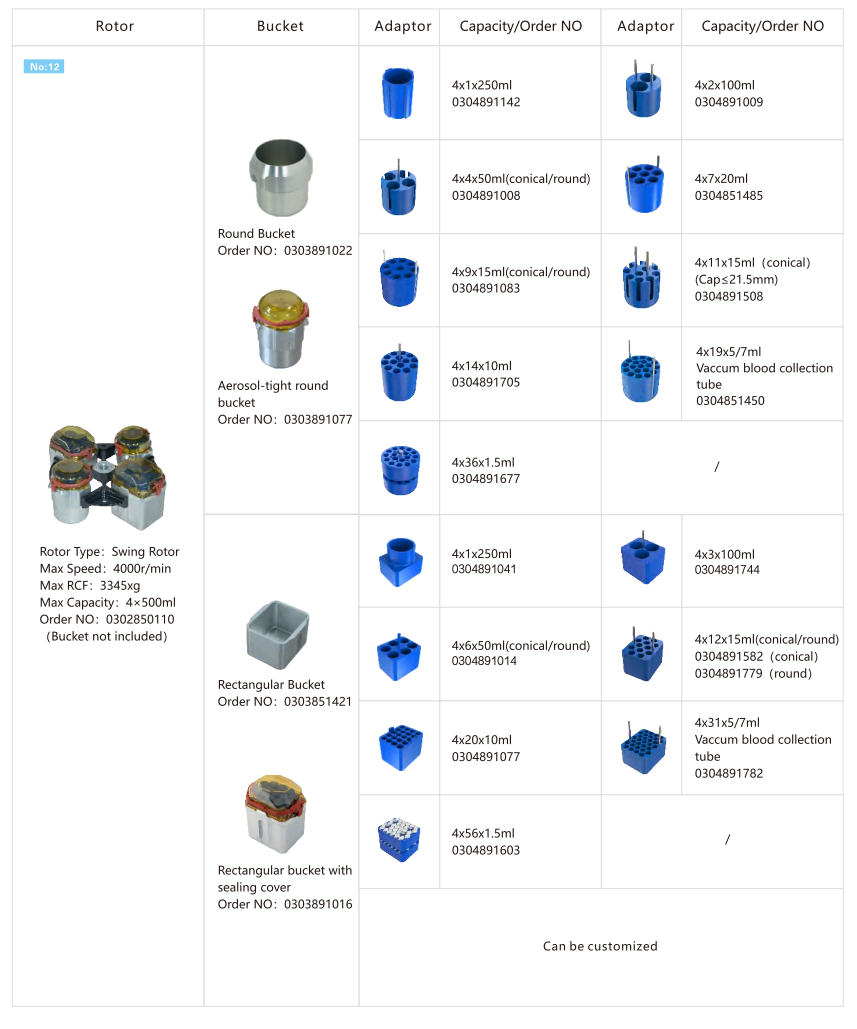

Rotor parameters

CHT210 /CHT210R(Large Capacity)CHT210R


CHT210 /CHT210R(Large Capacity)CHT210 /CHT210R(Large Capacity)CHT210 /CHT210R(Large Capacity)

CHT210 /CHT210R(Large Capacity)CHT210

CHT210 /CHT210R(Large Capacity)
