Product advantages
Automatic door locking system
The door opens and closes automatically when you touch the key on the screen. The door lid has an intelligent anti-pinch device.
Large Capacity, High Speed
The maximum sample processing capacity is 6x1000ml, the Maximum speed is 10000r/min, and the maximum RCF is 17700xg,
significantly improving the production efficiency and separation effect.
Built-in safety
We feature multiple protection options, such as automatic rotor identification, imbalance protection,over-speed protection,over-temperature protection,
motor overheating protection, door lid protection, etc.
Reliable Material
"The alloy aluminum rotor adopts 7075-T6 aviation grade alloy aluminum, hard oxidation, and corrosion resistance.
From raw materials to finished products, each process is strictly controlled. The flaw detection report, tensile test report, chemical composition test report,
and processing test report can be provided. Centrifuge chamber adopt 2mm thick 316
6L stainless steel,Housing (3mmQ235 steel),Containment(15mm Q235 steel),Diaphragm indoor lid(3mm Q235 steel)"
Extensible
The system adopts a unified and standard Ethernet communication interface and provides a key parameter point table to facilitate system
expansion and integration of data into system monitoring.
Programmable
You can save up to 100 user-defined programs. Users can name each program to Timestinguish it. Each program can be divided into five steps
(set speed, time, temperature) to meet the diversified experimental needs.
ACC/DEC Rates
11 acceleration and 12 deceleration rate(NO.10 rate can be self-defined) to prevent a second emulsion or turbidity from achieving the best centrifugation result.
Main interface function
In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by touching the key.
Powerful System Setting Function
PA's powerful control system allows easy data capture, storage, and processing.
Centrifuge Management System(Optional)
It can monitor 1 to 100 centrifuges through an intelligent terminal (computer), provide a real-time connection with the centrifuge with a mobile app,
build in help information in each interface, and make the centrifuge intelligent.
Technical parameter

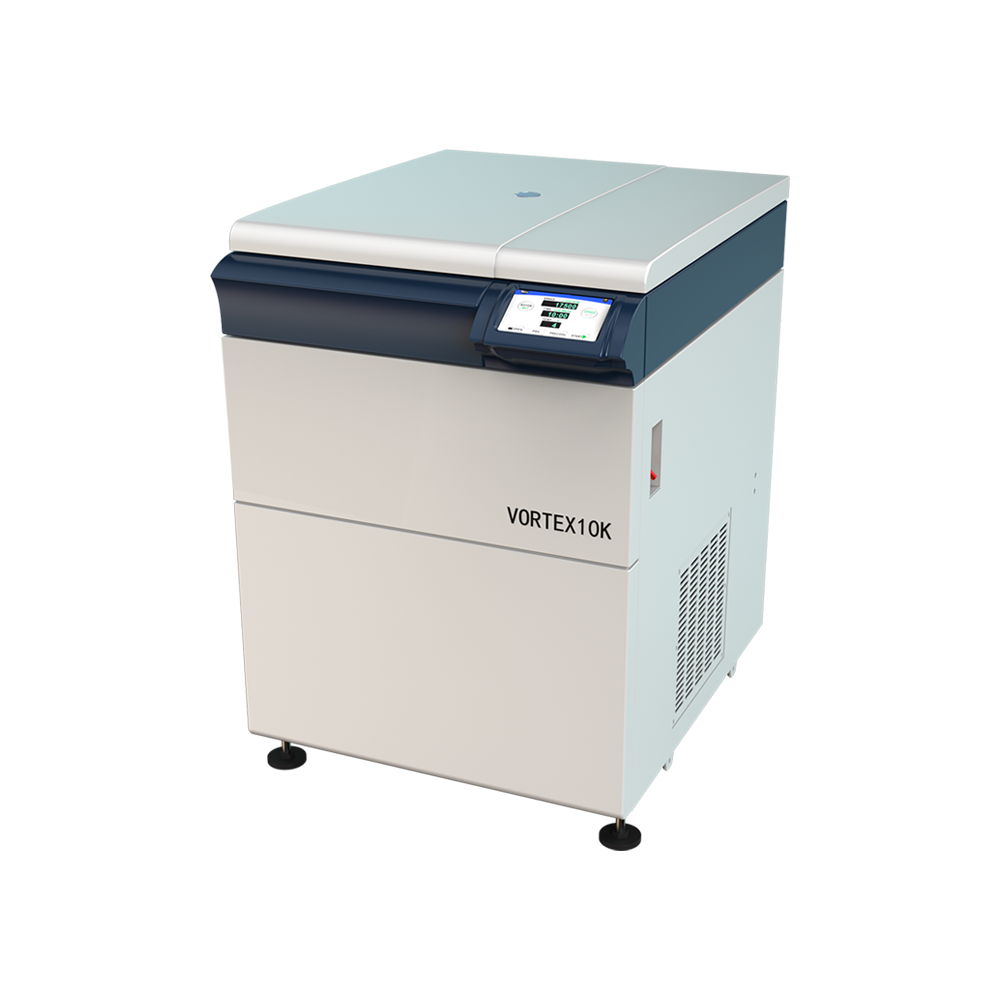

| Product Model | VORTEX 10K |
| Refrigerated | |
| Max Speed | 10000r/min |
| Max RCF | 17700xg |
| Max Capacity | 6×1000ml |
| Time Setting Range | two-mode 1min-99h59min,1s-99min59s optional,default mode 1min-99h59min |
| Timing mode | Start Timing after spinning, StartTiming after ReachSetting Speed, Continuous Timing, Operation at the appointed time. |
| Temperature Setting Range | -20℃~40℃,Setp 1℃ F17ajustable |
| Temperature Accuracy | ±2℃ |
| Speed Accuracy | ±10r/min |
| Power Supply | AC220±22V,50Hz |
| Power Consumption | 6.5kW |
| Noise | ≤65dB(A) |
| Rotor Identification | Yes |
| Imbalance Protection | Yes |
| Pre-cooling function | Yes |
| Computer Control | RS485 or RS232 |
| Protection Function | Imbalance Protection, Rotor-identification, Door Lid Anti Pinch Protection, Motor Overheating Protection, Over-Speed Protection, Over-temperature Protection |
| Dimension(WxDxH) | 700×900×940(mm) |
| Packing Dimension (WxDxH) | 920×1040×1200(mm) |
| Net Weigh | 355kg |

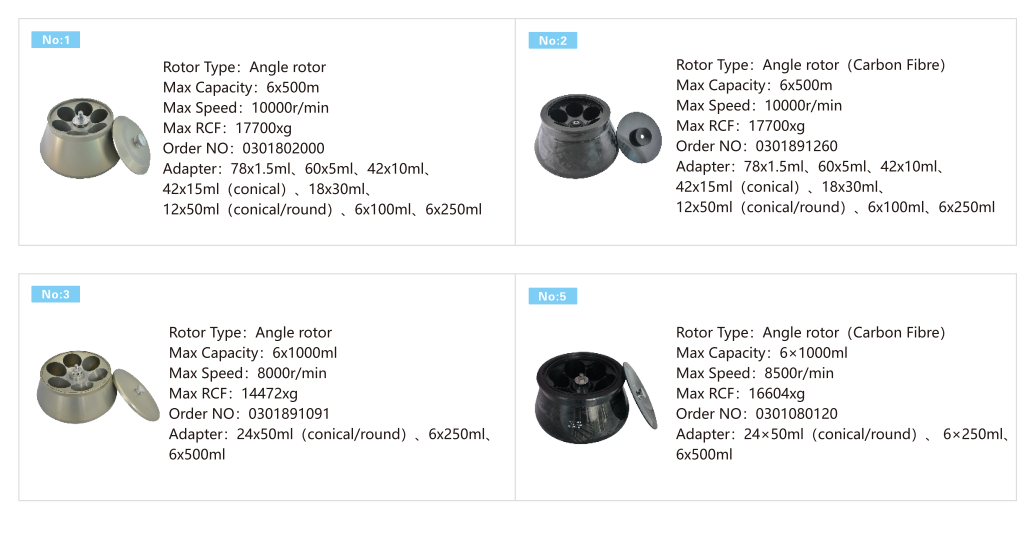

Rotor parameters
