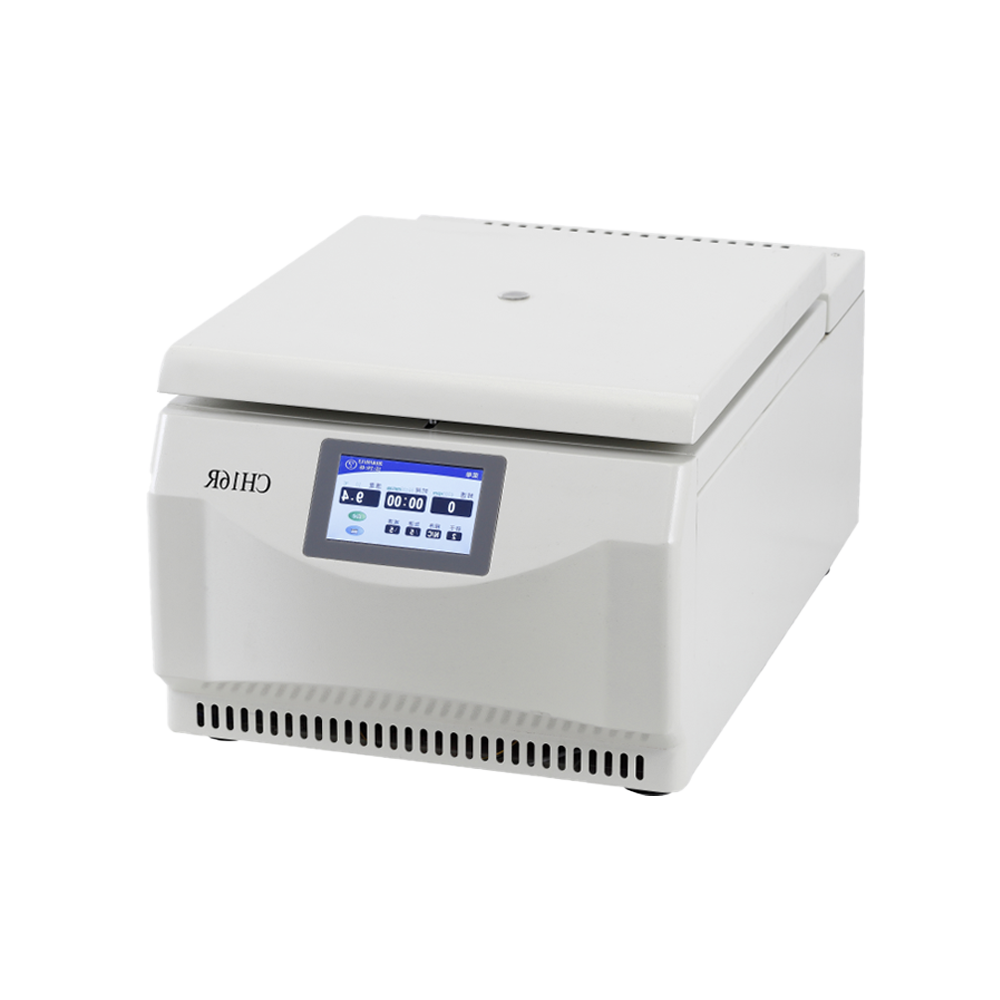

CH16R (Blood Collection)

CH16R refrigerated centrifuge designed for blood collection vehicles. Swing rotor 16x15ml and adapters, accommodate to vacuum blood collection tube, nucleic acid centrifuge tube and10ml 15ml tubes.It's especially suitable for nucleic acid centrifugation detection.Stainless steel Chamber, multiple protection, safe and reliable. The compressor is a fully enclosed type and rotary type.CH16Ris a good choice for a blood collection vehicle

Product advantages

With a unique sucker-type foot, it can suck on the table tightly.
With 5-inch HD touchscreen control, easy-operate and intuitive.
The setting parameters and running parameters at a glance.
With multiple adapters available, it's a compact, versatile, and indispensable general-purpose centrifuge.
The environmentally friendly compressor is adopted which has a good refrigeration effect and pollution.
Multiple protection, including over-speed,over-temperature, lock, and so on, to ensure user's safety.

Technical parameter

Product Model	CH16R (Specially for Blood Collection Vehicle)
	Refrigerated
Max Speed	5000r/min
Max RCF	3555xg
Max Capacity	4x4x15ml or nucleic acid tube
Speed Accuracy	±30 r/min
Time Setting Range	1min~99min
Temperature Setting Range	-20℃~40℃
Temperature Accuracy	±1℃
Compressor Unit	High-performance compressor unit, Environment-friendly refrigerant (134a)
Noise	≤65dB(A)
Power Supply	AC220±22V 50Hz
Power Consumption	500W
Dimension(W×DxH)	415×625×320(mm)
PackingDimension(W×DxH)	960×530×520(mm)
NetWeight	55kg

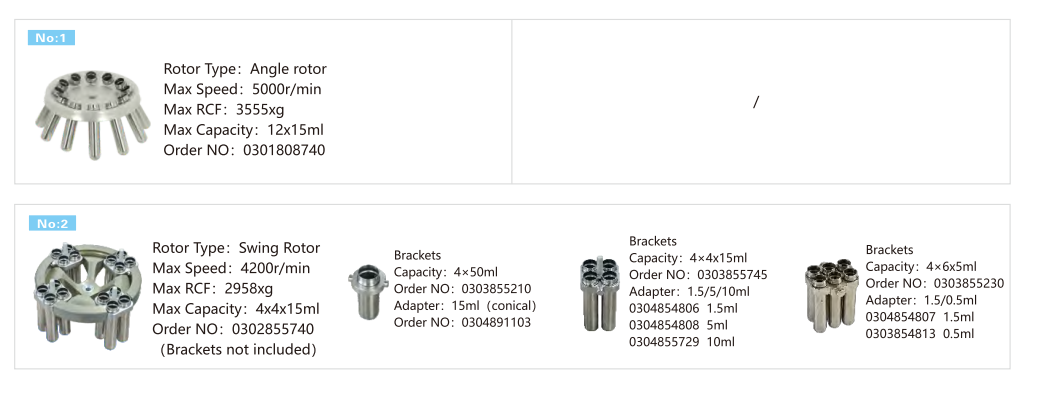

Rotor parameters
